Wire Drawing Machine (also named Wire Drawbench) is core industrial equipment to reduce wire diameter via pulling raw stock through sequential precision drawing dies, realizing plastic deformation of metal/plastic material. It optimizes wire roundness, surface finish and dimensional tolerance, widely adopted in hardware, wire & cable, auto parts, plastic processing and daily bamboo-wood manufacturing industries.
Read More
Wire Drawing Machine (also named Wire Drawbench) is core industrial equipment to reduce wire diameter via pulling raw stock through sequential precision drawing dies, realizing plastic deformation of metal/plastic material. It optimizes wire roundness, surface finish and dimensional tolerance, widely adopted in hardware, wire & cable, auto parts, plastic processing and daily bamboo-wood manufacturing industries.
Read More

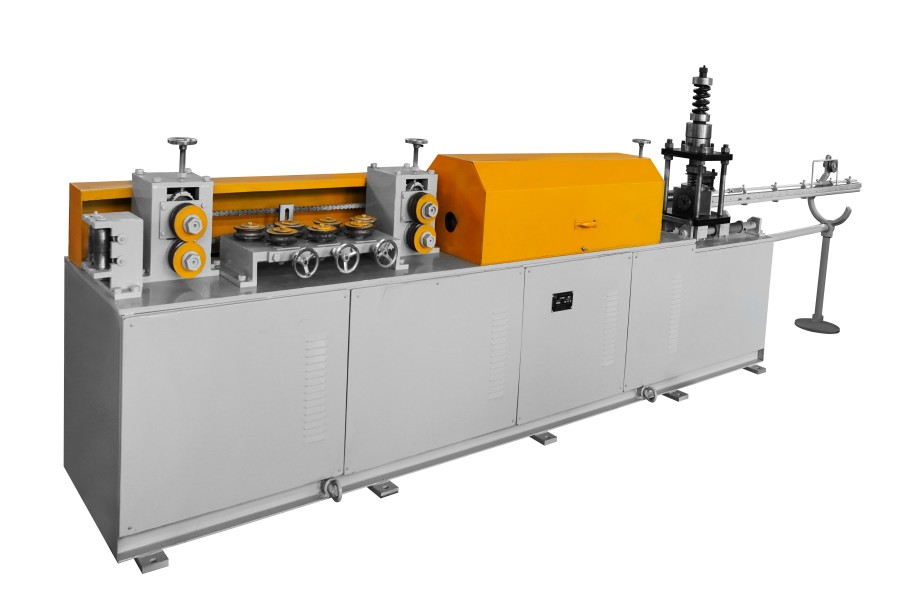

This machine is a VFD-type Steel Bar Straightening & Cutting Machine specially for 6.0–16 mm plain round bars. Equipped with multi-wheel precision straightening structure and 3 sets of synchronized powered feeding rollers, it realizes continuous processing including wire pay-off, rough straightening, precision straightening and hydraulic fixed-length cutting in one single pass. Fitted with Inovance VFD control system, separate driving motors are configured for straightening, feeding and cutting to ensure stable adjustable running speed. Its cutting length ranges from 50 mm to 2500 mm with customizable extended length, cutting tolerance reaches ±0.1 mm and finished bar straightness is controlled within ≤0.15 mm/m. Key configurations include GB-standard UCP214 pillow block bearings, JZQ250 reducer and a straightening drum with 7 wear-resistant straightening inserts inside. A cover-open emergency stop safety device is equipped, and cutting blades are available for custom production per client specifications. With robust compact layout and easy operation, it is widely used for precision blanking of round steel in construction stirrup, wire mesh and hardware fastener manufacturing industries.
Read More

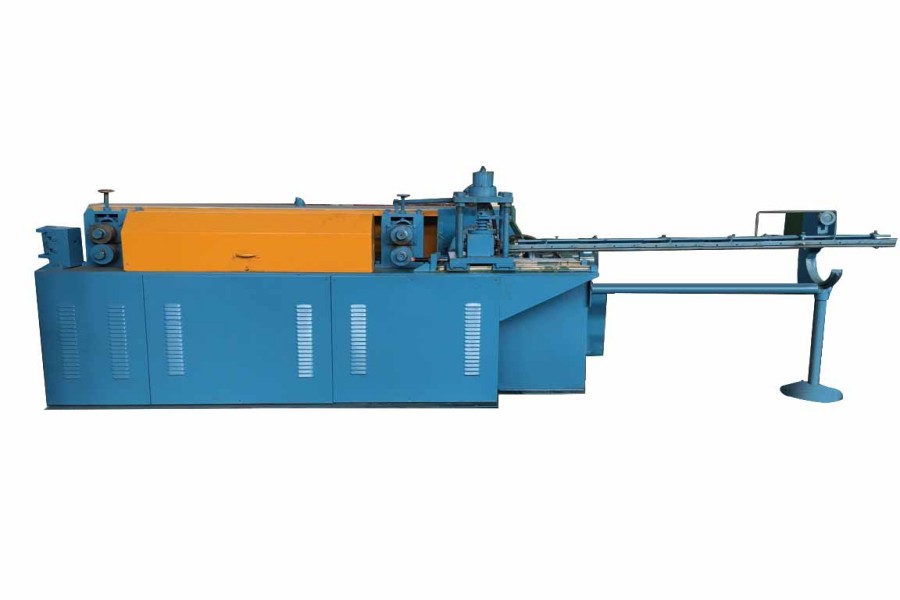

This Steel Wire Straightening and Cutting Machine is specially developed for processing plain round bars and deformed rebars, which can complete feeding, straightening and fixed-length cutting in one continuous process for coiled steel wires ranging from 3.0 mm to 8 mm in diameter. It adopts separate dual-motor configuration: a 4 kW feeding & straightening motor ensures steady wire feeding, while a 3 kW hydraulic motor powers the cutting unit. The cutting length ranges from 50 mm to 2000 mm, and extended working length can be customized per clients’ demands. The cutting precision reaches ±0.2 mm; feeding speed will automatically decrease when cutting short blanks to guarantee dimensional accuracy. Featuring an integrated compact robust cabinet structure, the machine is easy to operate and widely used in construction stirrup production, wire mesh fabrication and hardware processing industries, ideal equipment for precision cutting of coiled steel.
Read More

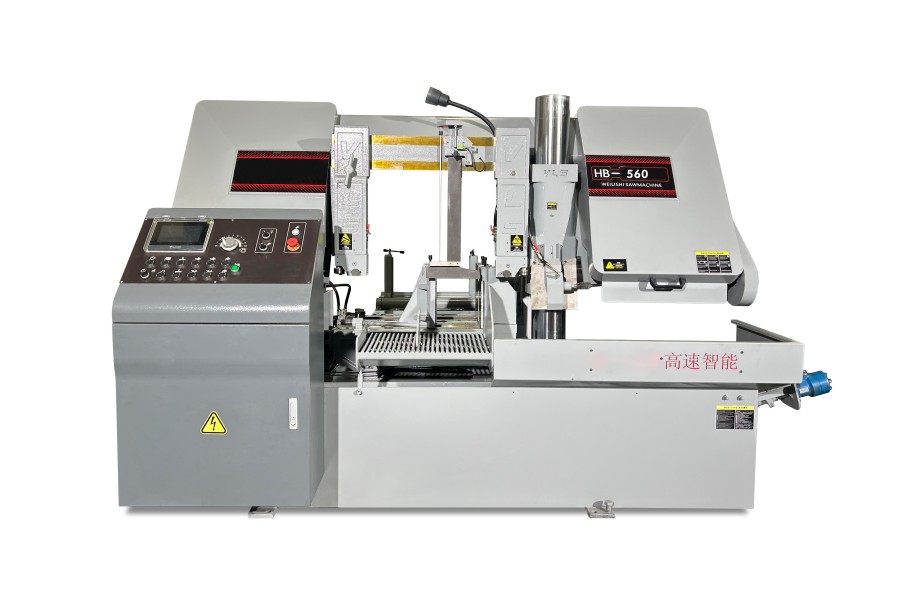

Model HB-560 is a high-speed intelligent CNC double-column horizontal band saw built with rigid gantry double-column frame for outstanding vibration resistance, designed for high-efficiency precision metal cutting, with max cutting capacity of Φ560 mm round stock and 560×560 mm square stock. Equipped with intelligent CNC control system and touch screen panel, it supports preset cutting length & cutting quantity to realize fully-automatic feeding, clamping, cutting and piece counting in one cycle. The machine features multi-grade adjustable cutting speed and hydraulically infinitely variable saw frame feed speed. Cemented carbide guide inserts prevent saw band deflection, while circulating coolant cooling system continuously lubricates blades to extend saw service life. Fitted with automatic hydraulic clamping vice for stable workpiece fixing, it works perfectly for carbon steel, alloy steel, tool steel, stainless steel and forged profiles. Featuring stable cutting precision and high automation, it is widely used in precision mold processing, auto parts production, steel structure and forging industry for mass raw material blanking.
Read More

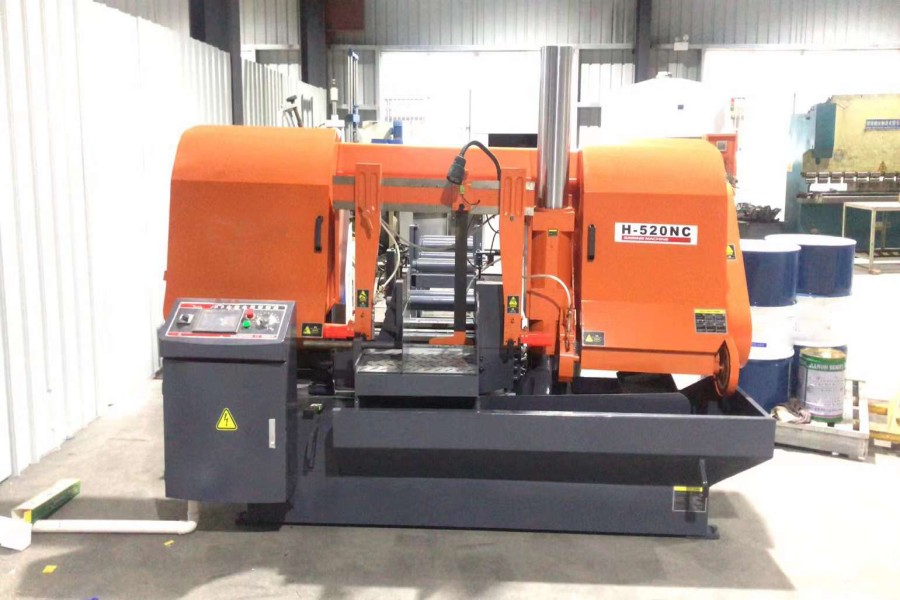

Model H520 is a gantry double-column CNC horizontal metal band saw with high-rigidity column frame for excellent anti-vibration performance. Its maximum cutting capacity is Φ520 mm for round stock and 520×520 mm for square stock, suitable for cutting round steel, square billet, alloy steel, tool steel and forged workpieces. It is equipped with five fixed cutting speeds: 20, 32, 48, 65, 80 m/min. The saw frame features hydraulically infinitely variable feed speed; the guide arm is manually adjustable and the saw blade adopts manual tensioning design, matched with recirculating coolant cooling system. Cemented carbide guide inserts effectively restrain blade deflection to extend service life of saw band. Power configuration: 5.5 kW main motor, 1.5 kW hydraulic pump motor and 90 W coolant pump motor; hydraulic working pressure ranges 2.5~3 MPa, with an 80 L coolant tank and 50 L hydraulic oil tank, net machine weight is 3 t. The built-in CNC control system enables automatic fixed-length feeding & automatic cutting for mass production. Widely used for batch blanking in steel structure, forging, machinery mold and hardware processing industries.
Read More
For round bar producers, steel mills and machining material suppliers, a bar peeling machine is usually purchased to solve a very specific production problem: the incoming bar surface cannot meet the next process requirement. Hot-rolled bars may carry oxide scale. Forged or rolled bars may have shallow cracks, decarburized layers, rust or uneven outer surfaces. […]
Bar straightness is one of the most practical quality factors in metal finishing. Even when the surface has been peeled or turned correctly, poor straightness can create problems in grinding, polishing, drawing, inspection and automatic feeding. For bright bar production lines, straightening is not an optional step; it is often the link that keeps the […]
In metal bar production, surface quality is not only a visual requirement. For many steel, copper, titanium, magnesium and aluminum materials, surface cracks, oxide layers and decarburized layers can affect downstream machining, drawing, polishing, heat treatment and final product stability. A centerless lathe is designed to remove these surface defects efficiently while keeping the bar […]
For steel mills, bright bar producers and metal processing workshops, surface quality is not only a visual requirement. It affects downstream machining stability, straightness control, material utilization and the final confidence of the buyer. When round bars, tubes or wire rods enter the finishing workshop with oxide scale, shallow cracks, decarburized layers or bending, a […]
For overseas machinery projects, equipment performance is only one part of the buying decision. Export packaging, loading arrangement, spare parts preparation, installation guidance and after-sales communication all affect whether the project can move smoothly from factory delivery to production start-up. This is especially important for large metal finishing equipment and complete bright bar production lines. […]
Bright bar surface quality depends on more than one machine. In many production lines, abrasive belt grinding and polishing equipment is used after peeling, turning or straightening to improve surface appearance, remove fine marks and prepare the material for higher-value applications. A well-configured grinding process can make the final product more consistent and easier to […]
