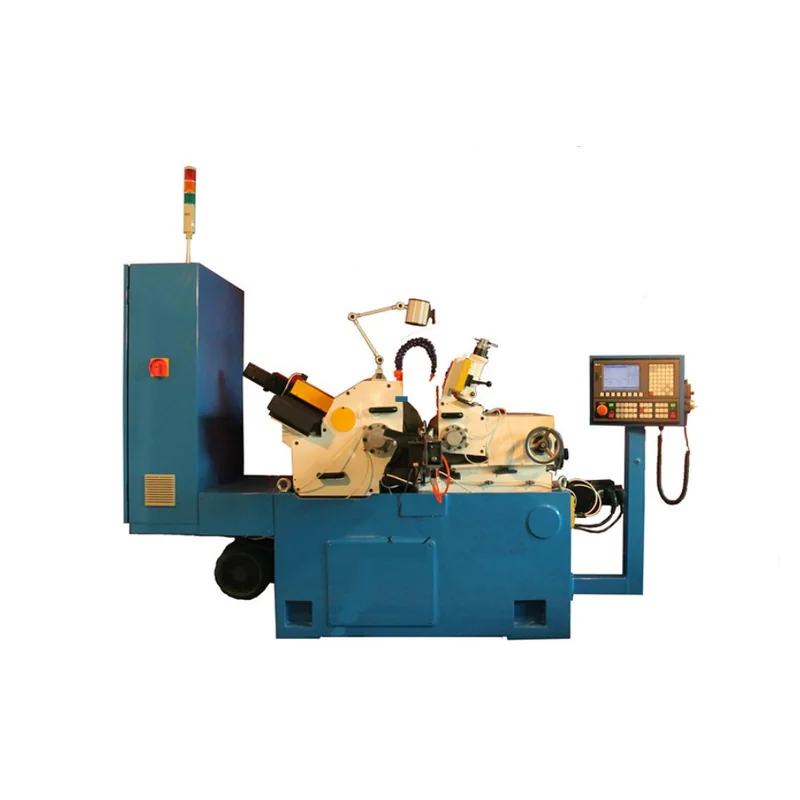

TDC centerless grinding machine performs grinding without locating the workpiece by its central axis. The main system consists of the grinding wheel, regulating wheel and work rest blade. The grinding wheel removes material from the workpiece surface, while the regulating wheel controls workpiece rotation and feed speed. The work rest supports the workpiece during grinding to maintain stable processing. The machine is suitable for continuous grinding of round bars, shafts, rollers, sleeves and other cylindrical components. It can be used for both rough and fine finishing depending on wheel selection and process settings. Advantages include high processing efficiency, stable roundness, good surface finish and easy integration with automatic feeding systems.

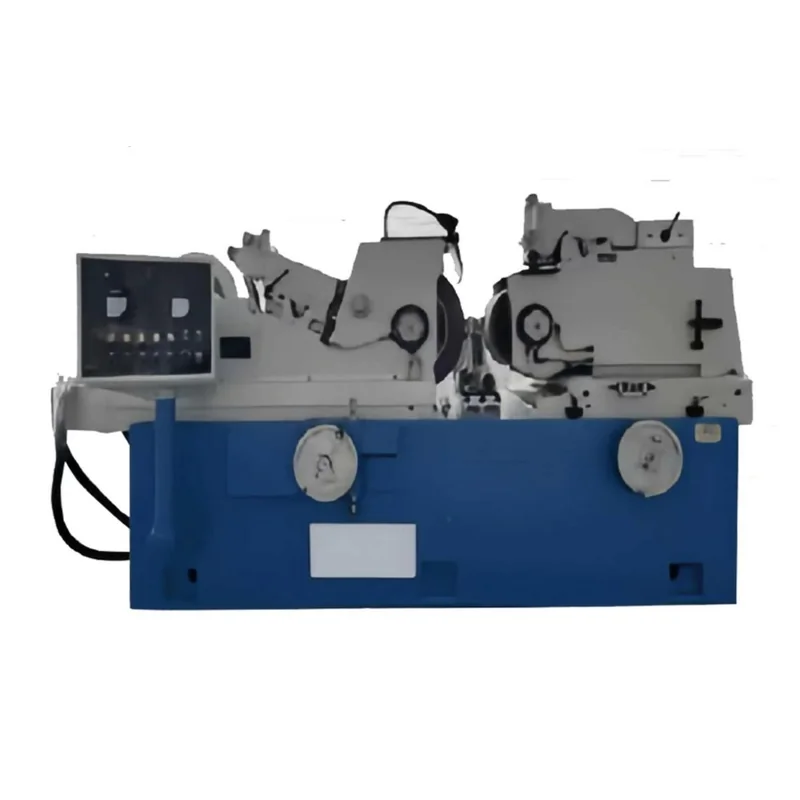

M10200 centerless grinding machine is used for through-feed grinding of cylindrical parts such as rings, shafts and bars. It can also perform plunge grinding for cones under 3 degrees, stepped shafts and various rotary workpieces. The machine adopts a double-side moving layout. The work rest remains fixed while the grinding wheel frame and regulating wheel frame feed toward the workpiece, making it convenient to integrate automatic loading and unloading devices. This structure is especially suitable for automation and for processing heavy or long bar-type parts. It provides stable grinding accuracy, reliable rigidity and consistent surface finish. Typical applications include bearing parts, shaft components, precision bars, automotive parts and industrial cylindrical workpieces that require high roundness and surface quality.

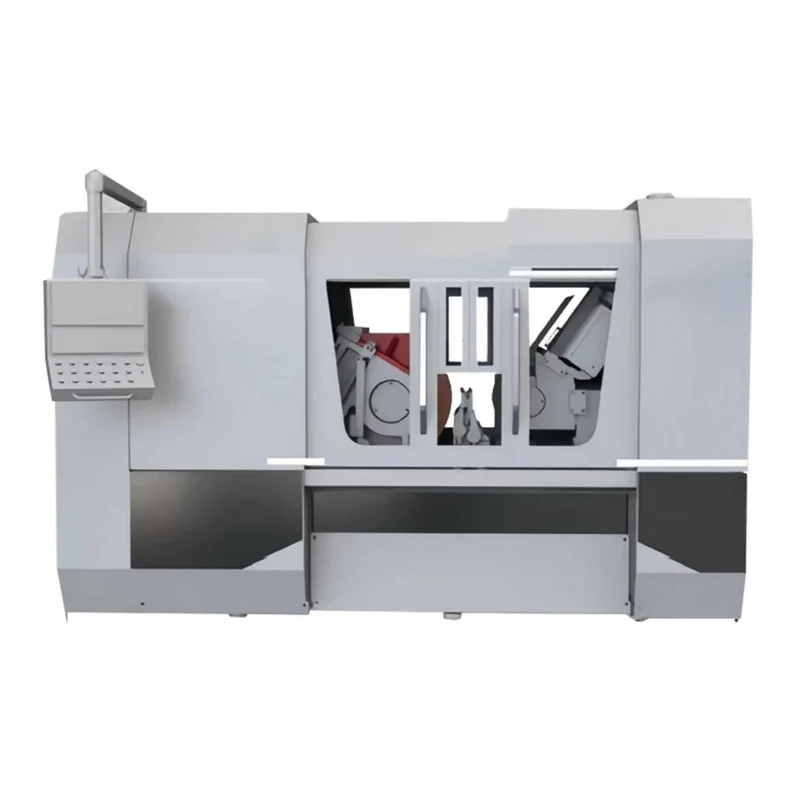

M Series centerless grinding machines are suitable for plunge grinding and through-feed grinding of workpieces with diameters from 1 mm to 200 mm. The maximum plunge grinding width can reach 400 mm. High-quality castings and improved internal coolant channels provide strong thermal stability and machine rigidity. The modular machine design allows selection of bearing spindles or hydrostatic ceramic spindles according to workpiece requirements. The machine uses a fixed work-rest layout with grinding wheel and regulating wheel feeding, simplifying later automation design. This advantage is especially valuable for grinding heavy parts and long bar-type workpieces. Modular dressing systems can be equipped with single-point diamond dressers, diamond rollers or forming rollers, and optional acoustic sensors can optimize dressing performance and grinding stability.
