Metal Processing Equipment Manufacturer for Peeling, Grinding, Cutting and Pickling Lines

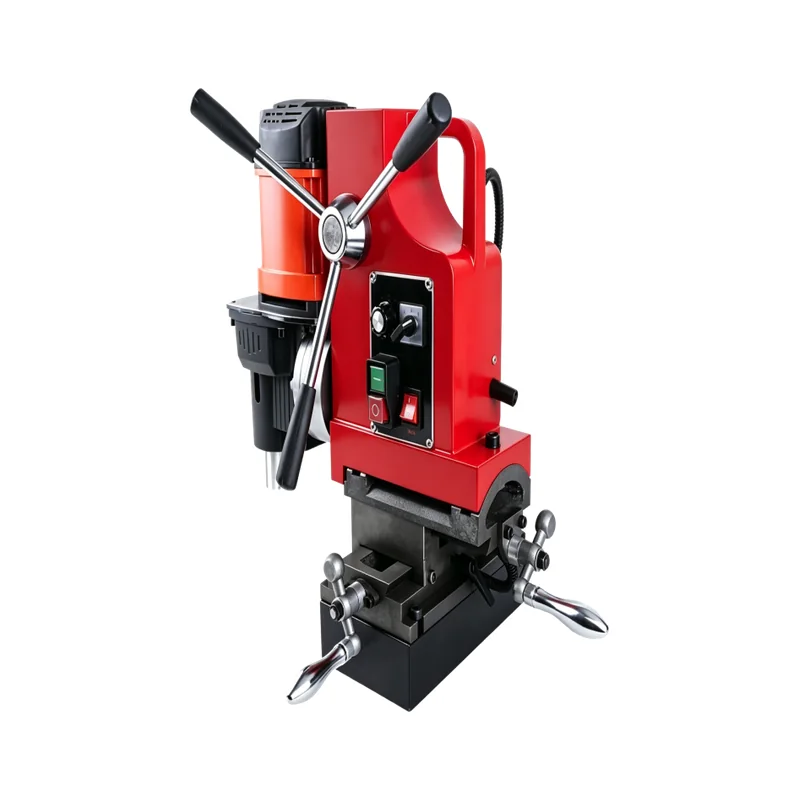

FDX30-6 is a six-axis portable electromagnetic drilling and milling machine. It is equipped with a 1500 W motor, 220 V single-phase power input and a heavy-duty 32000 N electromagnetic base that firmly attaches to steel surfaces for on-site machining. The MT3 spindle supports stepless 0 to 1000 rpm speed control and forward/reverse rotation. X/Y/Z table travel is 150 x 100 x 220 mm, while the six-axis structure enables multi-angle rotary indexing for complex workpieces. The machine covers drilling, boring, milling, grinding and cutting. It supports maximum twist drilling diameter of 30 mm, maximum boring diameter of 160 mm and milling cutter sizes from 20 mm to 50 mm. With a compact 50 kg body, FDX30-6 is suitable for steel structure installation, emergency equipment repair, engineering machinery maintenance, mold repair and outdoor field machining.

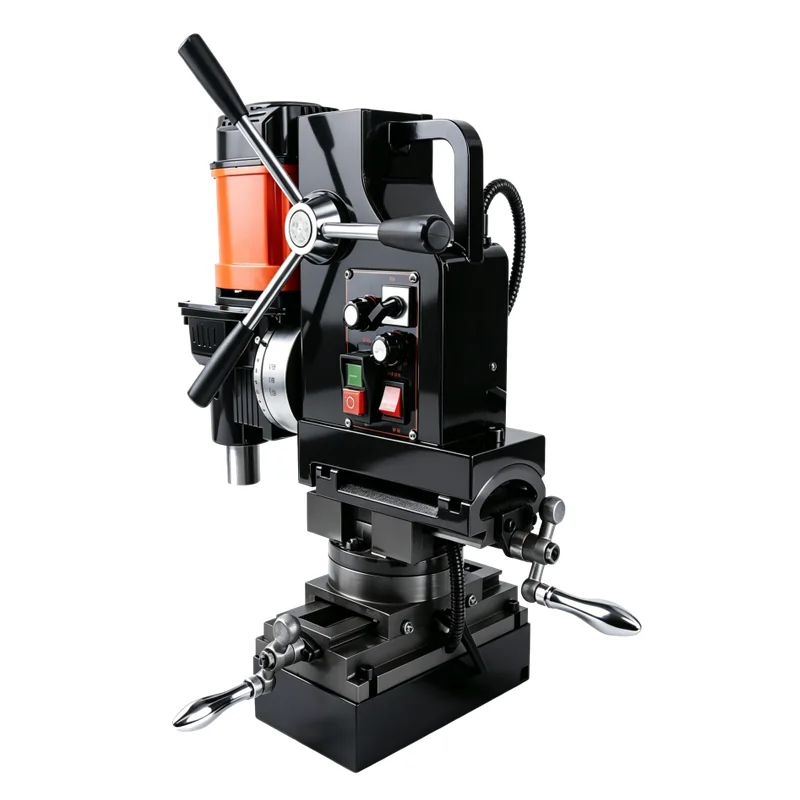

FDX30 series includes 4-axis and 5-axis portable electromagnetic drilling and milling machines. The machine is fixed on steel workpieces by a powerful 32000 N electromagnetic base, allowing on-site machining without additional clamping fixtures. The machine is powered by a 1500 W motor with 220 V single-phase power supply. The MT3 spindle supports 0 to 1000 rpm speed adjustment and forward/reverse rotation. X/Y/Z table travel reaches 150 x 100 x 220 mm. The equipment supports drilling, boring, milling, grinding and cutting operations. The 5-axis model adds rotary indexing capability for more flexible multi-angle machining. With compact size and portable weight, FDX30 is widely used in steel structure installation, equipment maintenance, mold repair, engineering machinery service and field machining operations.
