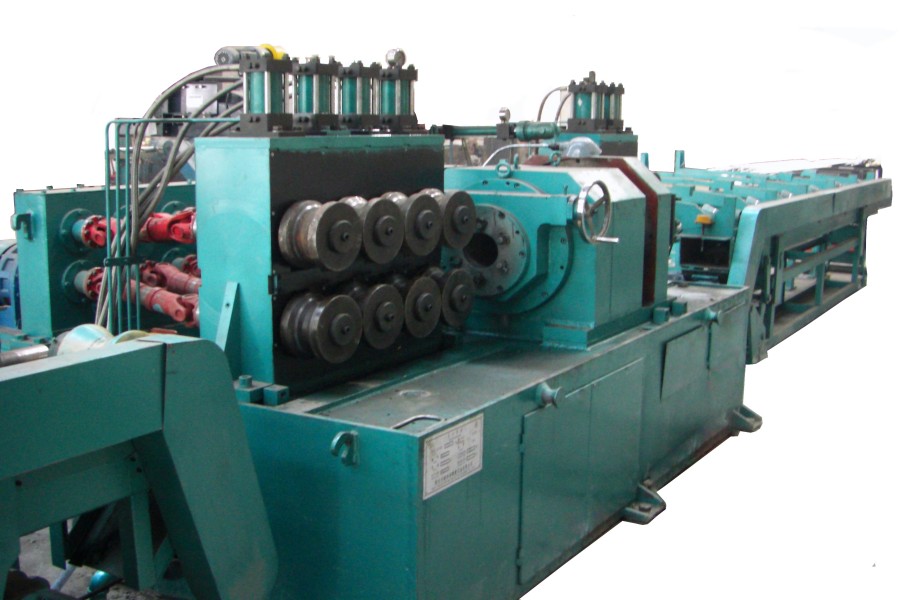

WXC30C

Semi automatic type is operated both hydraulically and manually. For example, tool is adjusted manually, feeding and extracting are realized with hydraulic controlled clamping device, and auto material loading and unloading are finished with pneumatic and electric controlled device. Operated with ease, high in cost performance, this machine is quite suitable for small or medium enterprises which requires lower degree of automation.

Technical Parameters

model		WXC30C
material requirement	diameter range (mm)	6.5＜dia＜31
	material length (mm)	≥1400
	yield strength(Mpa)	≤1100
	surface hardness	≤HB320
	straightness (mm/m)	≤1.5
	diameter tolerance	according to GB 702-2004 second group
	roundness(mm)	≤50% of diameter tolerance
	surface roughness(Ra)	≤25～50μm
finished product	diameter range(mm)	6≤dia≤30
	diameter cutting depth(mm)	0.5~1.0
	diameter tolerance	≤h10
	surface roughness (Ra)	≤6.3μm
feeding speed (m/min)		1.0~8.0
cutting head rotation rate per minute(rpm)		900~2000
main motor(kw）		30
total capacity（kw）		50
compressed air (prepared by user)		0.5~0.8MPa,1.8m3/min,0.8 m3 up air tank with two stage oil water separator and compressed air freezing type drying machine
